| Parametr | ROBOCADDY II | ROBOCADDY III |
|---|---|---|
| Length | 735 mm | 990/ 1450 mm |
| Width | 450 mm | 450 mm |
| Height | 262 mm | 220 mm |
| Load-bearing capacity | 500 kg | 750/ 500 kg |
| Traction force | N/A | |
| Speed | 1.2 m/s | 1.2 m/s |
| Swivel chassis | no | no |
| Lift | 60 mm | 85 mm |
| Movement | bidirectional/ differential | omnidirectional |
| Customer superstructure | yes | yes |
| Weight | 115 kg | 200/ 250 kg |
| Safety | 1-2 scanners/ 2 bumpers | 4 scanners/ 1 3D camera |
| Navigation | Magnetic tape/ SLAM | Magnetic tape/ SLAM |
| Operating | 10-45 °C | 10-45 °C |

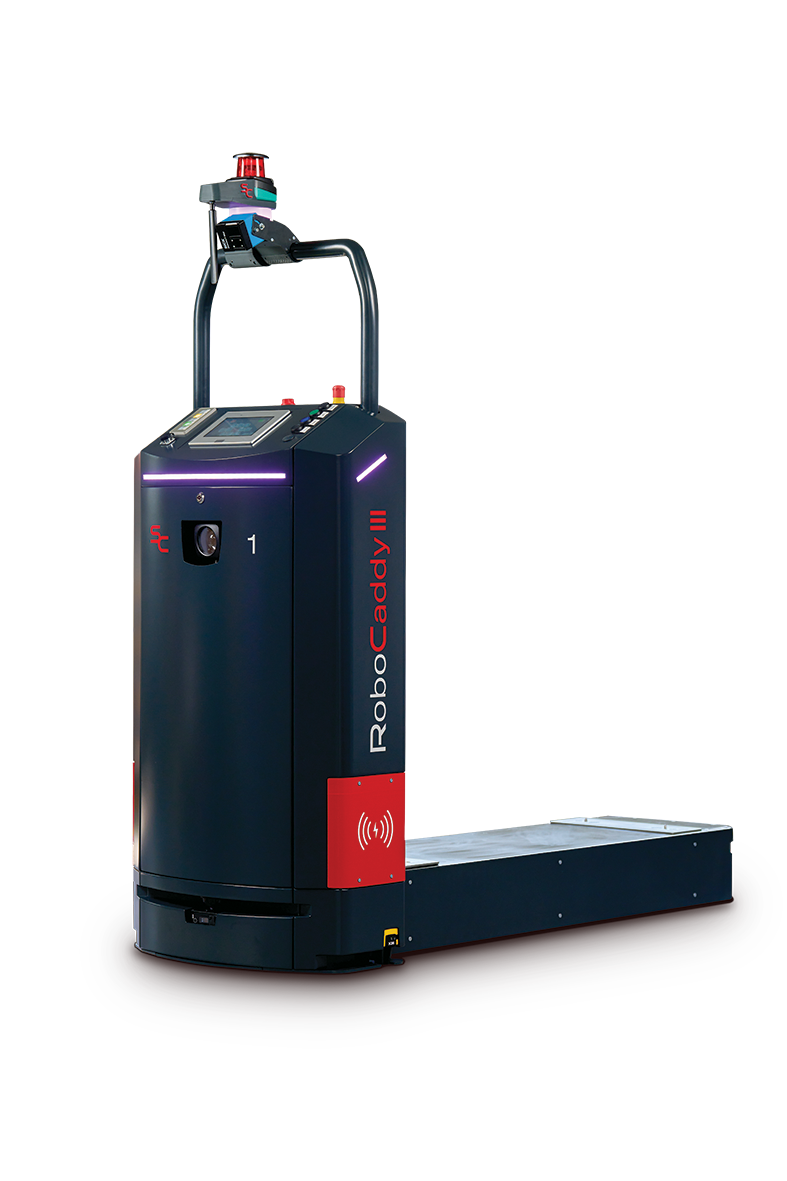

A two-way vehicle equipped with a control panel in an ergonomic position, which is equipped with a touch-sensitive operator panel and buttons for communication with the higher-level system. A lifting mechanism can also be integrated into the vehicle. Due to the great variability of construction and equipment, we produce RoboCaddy in several versions and dimensions.
RoboCaddy datasheet
